FA-36 Fiber Fusion Splicer
Model:
FA-36
Compact and reliable fusion splicer with fast splice time and low loss.
- Professional grade quality
- 12-month warranty
- Lifetime technical support
- Worldwide shipping
Product Description

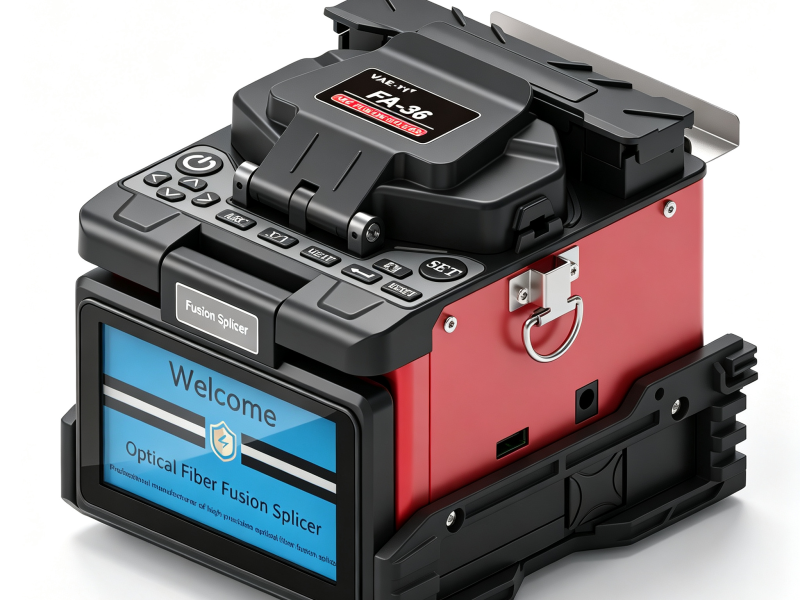

VAEYI FA-36 — High-Precision 4-Motor PAS Alignment Fusion Splicer
The VAEYI FA-36 is a professional-grade, highly portable 4 motor fusion splicer engineered specifically for FTTH (Fiber to the Home) projects, drop cable installations, and medium-to-short distance optical fiber communication networks. Equipped with an advanced Profile Alignment System (PAS) and automatic induction heating, the FA-36 delivers ultra-low splice loss and exceptionally reliable performance in a compact, durable frame.
Key Performance Advantages
- Precision 4-Motor PAS Alignment: Utilizing a high-precision 4-motor system, the FA-36 ensures fast, stable core-to-cladding alignment, minimizing average splice loss to just 0.02dB (SM) and 0.04dB (MM).
- Rapid & Intelligent Operation: Splicing in just 8 seconds and rapid heating in 13 seconds. Features an automatic induction heater that initiates heating immediately upon lid closure, dramatically accelerating field-work productivity.
- Robust Environmental Endurance: Built to withstand the toughest outdoor environments. Operating flawlessly at altitudes up to 5,000 meters, temperatures from -10°C to +50°C, and under winds reaching up to 15 m/s.
- High-Capacity Battery Lifecycle: Powered by a premium 5200mAh rechargeable lithium battery, supporting up to 240 cycles of simultaneous splicing and heating, enough to power through a full utility shift without interruption.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model | VAEYI FA-36 |
| Alignment System | Precision 4-Motor PAS Alignment System |
| Average Splice Loss | SM (0.02dB) | MM (0.04dB) | DS/NZDS (0.04dB) |
| Splicing & Heating Time | Splicing: 8s | Heating: 13s (Fastest) |
| Fiber Magnification | 300x (X or Y single-axis display) |
| Electrode Lifespan | Up to 5,000 discharges (Replaceable) |
| Weight & Dimensions | 150mm x 120mm x 135mm | 1.65KG (including battery) |
What’s in the Box? (Full Splicing Kit)
The VAEYI FA-36 comes as a ready-to-work, fully-loaded integration kit inside a heavy-duty, impact-resistant carrying case, containing:
- FA-36 Fusion Splicer Host (with 5200mAh battery)
- High-Precision Optical Fiber Cleaver
- Quick-start User Manual
- AC Power Cable & Power Adapter
- Drop Cable Stripper & Miller Stripper
- Carrying Case Strap & Shoulder Strap
- Cleaning Brush & Alcohol Bottle
- Spare Electrodes (1 Pair) and USB Drive
Global B2B Wholesale, OEM & ODM Support
At VAEYI, we manufacture high-performance industrial fiber technology tailored to the strict requirements of network contractors worldwide. We offer volume pricing, custom branding, localized packaging, and direct technical backing for international exclusive distributors.
Interested in introducing the FA-36 4 motor fusion splicer to your local telecom market? Contact our commercial engineering team today to receive a wholesale quote and order an evaluation unit!
To learn more about our manufacturing standards and full R&D portfolio, please visit our parent company site: VAEYI Official Website.
Technical Specifications
| Splice Type | Single Fiber |
|---|---|
| Splice Time | 7 seconds |
| Tube Heat Time | 30 seconds |
| Splice Loss | ≤0.02dB |
| Fiber Type | SM/MM/DSF/NDSF |
| Display | 4.3 inch LCD |
| Battery Capacity | 200 cycles |
| Operating Temp | -10°C to 50°C |
